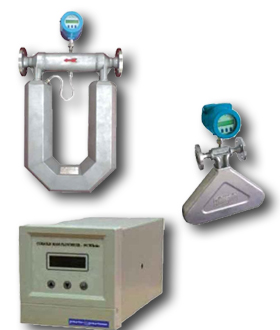

Flokal B.V. Coriolis Mass FlowmeterMeasurement of mass flow rate, mass total, volume flow rate and volume total, density and temperature of liquids, slurries and multiphase liquids are measured.

Applications:

  • Mass flow and water content in oil fields and petrochemical plants;
  • Chemical process;
  • Food and beverage industries;
  • Pharmaceutical industry;
  • Paper mills (pulp);
  • Measurement of fuels such as LPG, LNG, etc.

Main Features:

  • High accuracy and precision of 0.2% of reading;
  • Wide Turndown Radio;
  • Can measure liquids of all types, slurries and multiphase liquids (solids or air bubbles mixed inside liquid);
  • Wetted parts are stainless steel and can be used for corrosive liquids;
  • Mass flow, volume flow, density and temperature measurement without additional instruments;
  • Measurement acuracy not affected by whether laminar or turbulent and there's no need for flow profile stablization by means of  flow straightner or straight pipe sections upstream or downstream;
  • Minimal pressure loss;
  • No moving parts, longer life and easy maintenance.



FMCM-I Series

Flokal B.V.Coriolis Integral Mass Flowmeter series FMCM is a mass flowmeter that measures mass flow, density and temperature (volume flow calculated) of liquids, slurries and multi-phase liquids directly without going through calculation process based on other variables.

It has no moving parts in the flow. And it doesn't require any special device for installation and it doesn't require flow profile stabilization, meaning it doesn't require straightener or straight pipe sections  either upstream or downstream. The wetted parts are made of stainless steel and therefore can be used for corrosive liquids.

FMCM-R Series




Flokal B.V.Coriolis Remote Mass Flowmeter series FMCM is a mass flowmeter that measures mass flow, density and temperature (volume flow calculated) of liquids, slurries and multi-phase liquids directly without going through calculation process based on other variables.

It has no moving parts in the flow. And it doesn't require any special device for installation and it doesn't require flow profile stabilization, meaning it doesn't require straightener or straight pipe sections  either upstream or downstream. The wetted parts are made of stainless steel and therefore can be used for corrosive liquids.
Model Flow Range Operation Pressure Operating Temperatur Accuracy Output
FMCM-I Series 20 - 1000000 kg/h As Required -50°C to +125°C 0.1% or 0.2% & 0.5% (F.S.) See the Output in the catalog.
FMCM-R Series 20 - 1000000 kg/h As Required -50°C to +350°C 0.1% F.S. or 0.2% F.S. & 0.5% F.S. See the Output in the catalog.

Flow Meter and Flow Controller Solutions by Flokal B.V.

Flokal flow solution portfolio contains breakthrough product innovations designed to solve problems, increase profits and save costs. We have brought on the Flow Measurement market Thermal, Ultrasonic, Variable-area, Turbine, Orifice, Electromagmetic and Coriolis technologies of flow meters and flow controllers.
